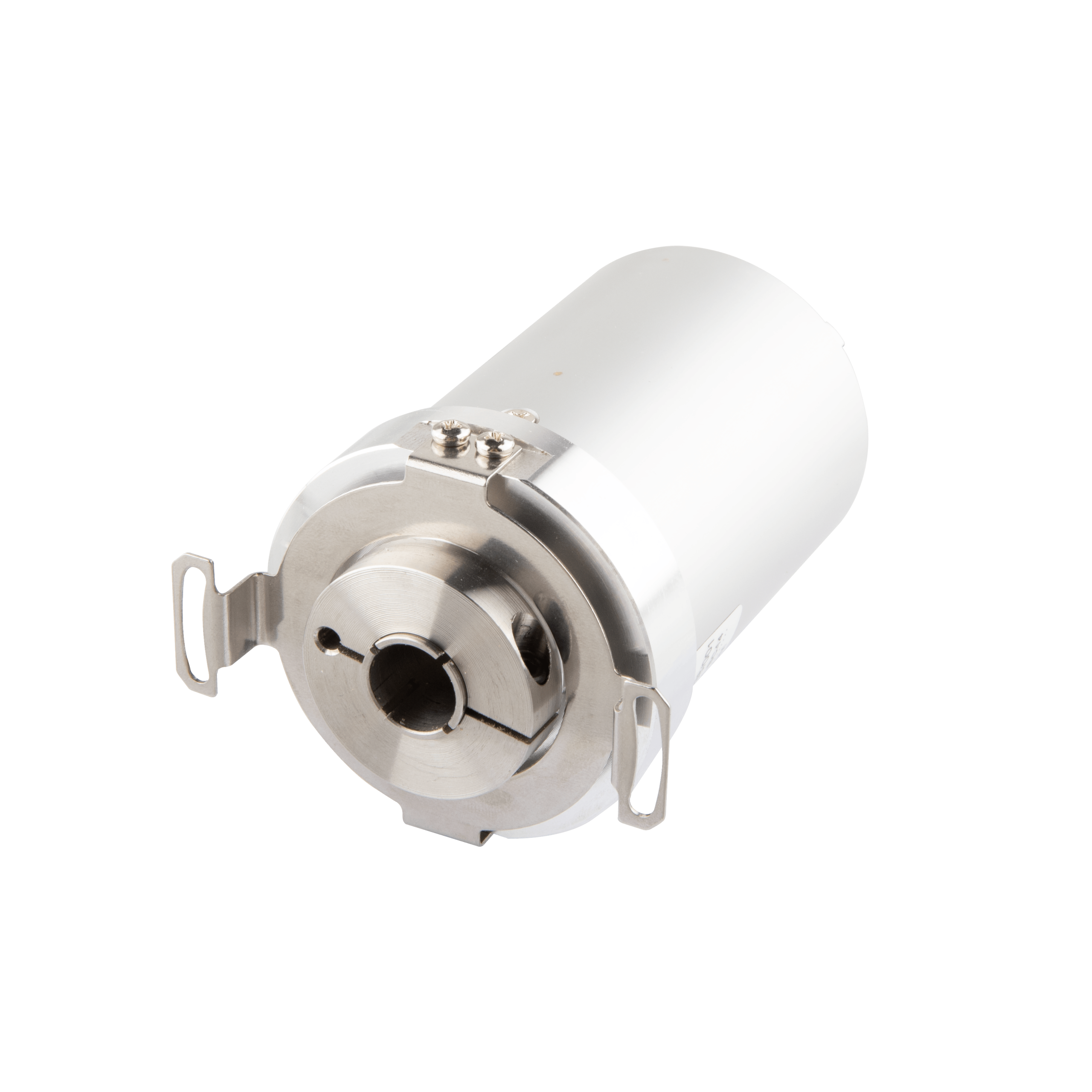

EAM58W10-BF6XTR-4096/8192PNOM Absolute multiturn magnetic encoder
Absolute multiturn magnetic encoder, Series EAM58-PNOM, Flange double-wing fixing plate, Hollow Shaft Diameter 10H7 mm, 10…30 VDC, PROFINET IO interface, Axial, 3x M12 connectors, Resoluteion 4096/8192
In Stock
$730.35
per unit
Applications: Motion Control
Technical Data
| Shock resistance | 50 g, 11 ms |
| Vibration resistance | 10 g, 10 … 2000 Hz |
| Max load capacity of the shaft | 40 N Axial80 N Radial |
| Moment of inertia | 1.8 x 10-6 kgm2 |
| Resolution | 8192 ppr |
| Supply voltage | 10 … 30 V DC |
| Connection type | M12 Socket |
| Model | Absolute Multiturn Encoder |
| Housing material | Al-alloy |
| Housing diameter | 50 mm |
| IP rating | IP65 |
| Flange type | Fixing plate |
| Shaft type | Blind hollow shaft |
| Shaft diameter | 10 mm |
| Max speed(rpm) | 6000 rpm |
| Starting torque | ＜ 0.05 Nm |
| Relative humidity/condensation | 90 % Condensation not permitted |
| Ambient temperature | -40 … +80 °C |
| Weight | 600 g |
| Interface type | PROFINET |
| Output code | Binary |
