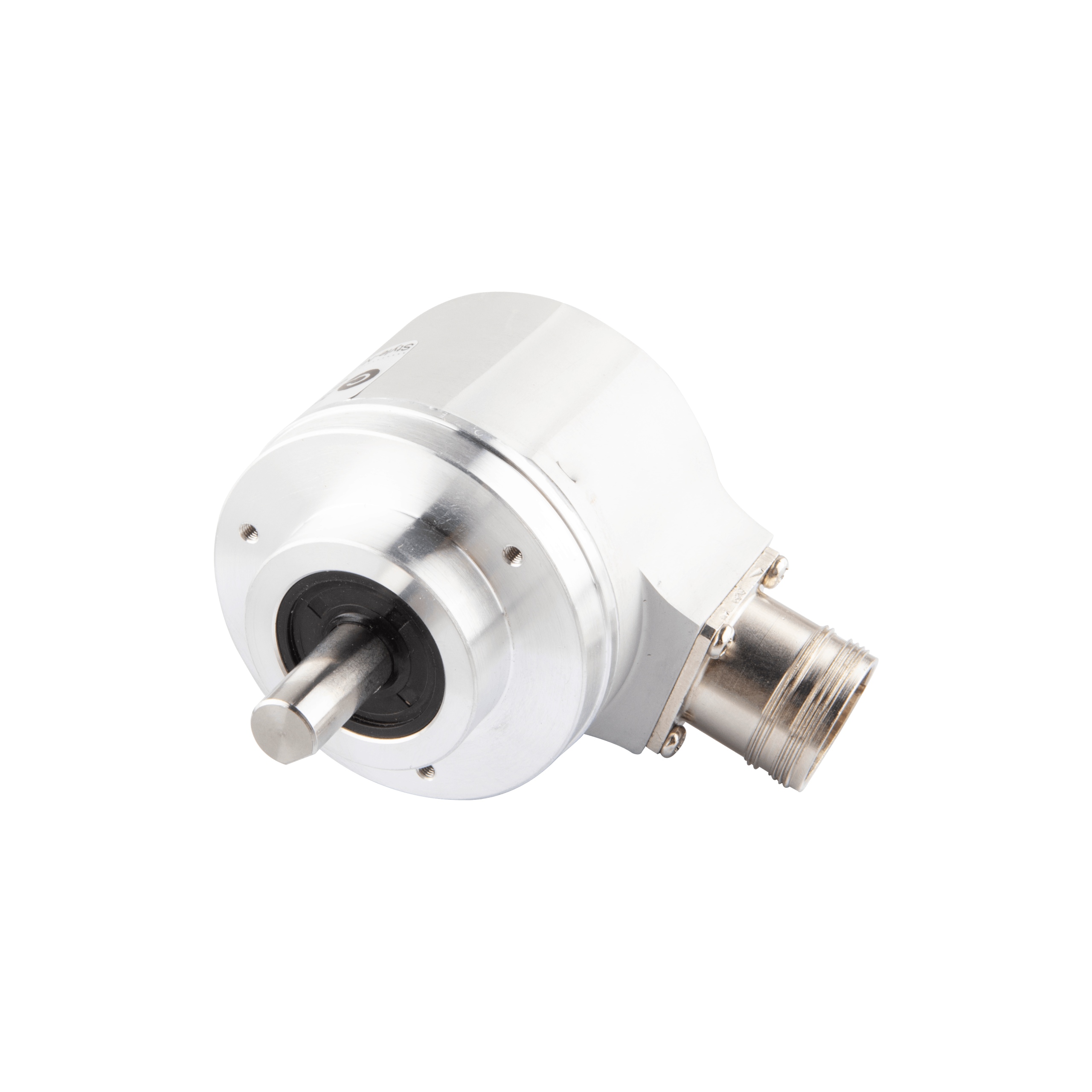

EAM58C10-GS6XTR-4096/4096EU Absolute multiturn Encoder
Absolute multiturn Encoder, EAM58-EU Series, Clamping flange, Shaft Diameter 10g6 mm, Supply Voltage 10…30 VDC, SSI Interface, Gray, Radial, M23 12Pin, Resoluteion 4096/4096
In Stock
$651.98
per unit
Applications: Motion Control
Technical Data
| Shock resistance | 50 g, 11 ms |
| Vibration resistance | 10 g, 10 … 2000 Hz |
| Model | Absolute Multiturn Encoder |
| Housing material | Al-alloy |
| Housing diameter | 58 mm |
| IP rating | IP65 |
| Flange type | Clamping flange |
| Shaft type | Solid shaft |
| Shaft diameter | 10 mm |
| Max load capacity of the shaft | 80 N Axial160 N Radial |
| Max Speed(rpm) | 6000 rpm |
| Moment of inertia | 1.8 x 10-6 kgm2 |
| Relative humidity/condensation | 90 % Condensation not permitted |
| Ambient temperature | -40 … +80 °C |
| Weight | 750 g |
| Resolution | 4096 ppr |
| Supply voltage | 10 … 30 V DC |
| Interface type | SSI |
| Output code | Gray |
| Connection type | M23 12-pin Male |
| Starting torque | ＜ 0.01 Nm |
