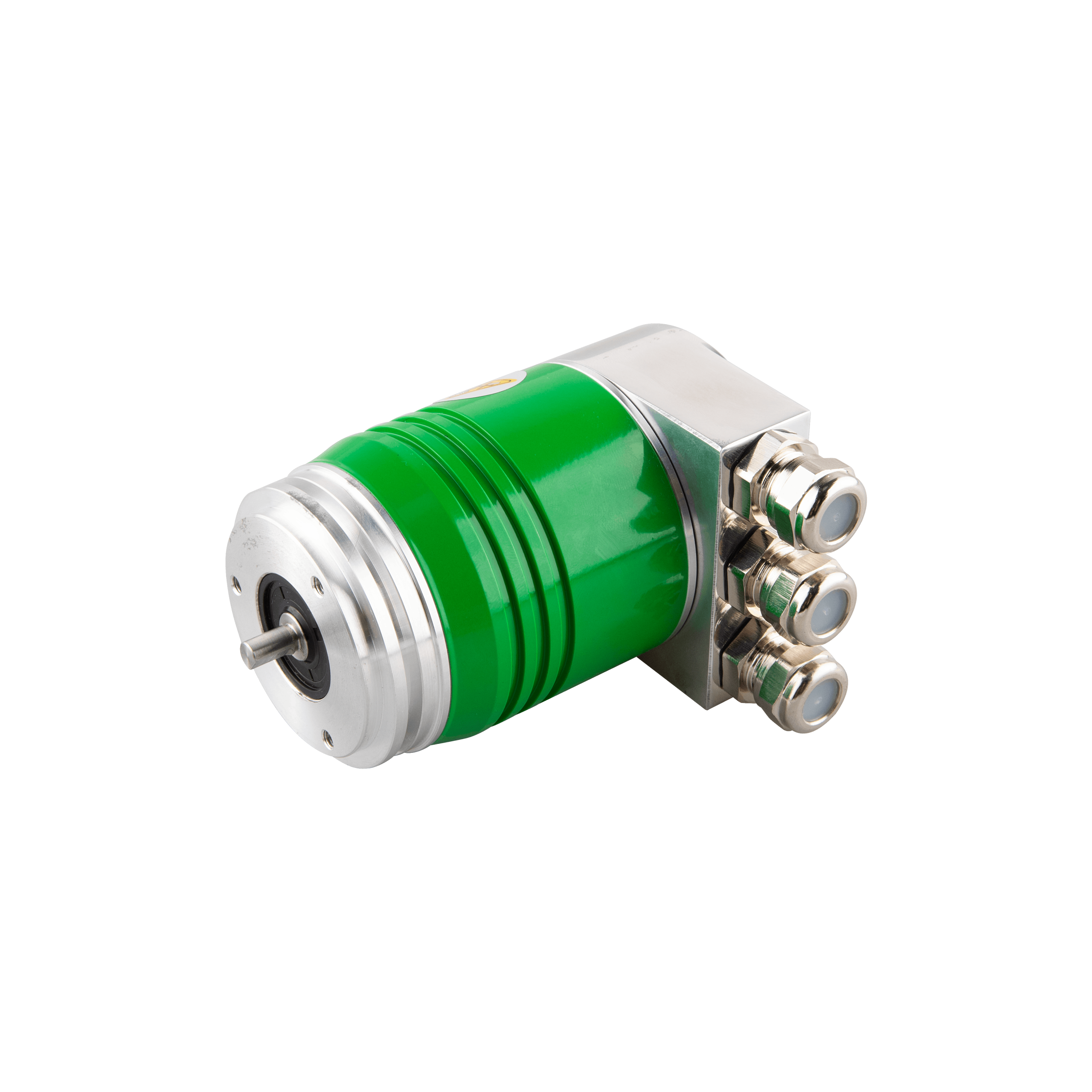

EAM58B6-BF6XXR-4096/8192DP Absolute multiturn encoder
Absolute multiturn encoder, Series EAM58-DP, Flange synchro, Shaft length 10 mm, Shaft 6g6 mm, 10…30 VDC, Profibus-DP interface, Radial, Integrated coupler terminal box with 3 PG7 threaded connectors, Resoluteion 4096/8192
In Stock
$869.40
per unit
Applications: Motion Control
Technical Data
| Model | Absolute Multiturn Encoder |
| Housing material | Al-alloy |
| Housing diameter | 58 mm |
| IP rating | IP65 |
| Flange type | Synchro flange |
| Shaft type | Solid shaft |
| Shaft diameter | 6 mm |
| Max load capacity of the shaft | 80 N Axial160 N Radial |
| Max speed(rpm) | 6000 rpm |
| Shock resistance | 50 g, 11 ms |
| Vibration resistance | 10 g, 10 … 2000 Hz |
| Moment of inertia | 1.8 x 10-6 kgm2 |
| Starting torque | ＜ 0.05 Nm |
| Relative humidity/condensation | 90 % Condensation not permitted |
| Ambient temperature | -40 … +80 °C |
| Weight | 800 g |
| Resolution | 8192 ppr |
| Supply voltage | 10 … 30 V DC |
| Interface type | Profibus-DP |
| Output code | Binary |
| Connection type | Terminal block wiring |
