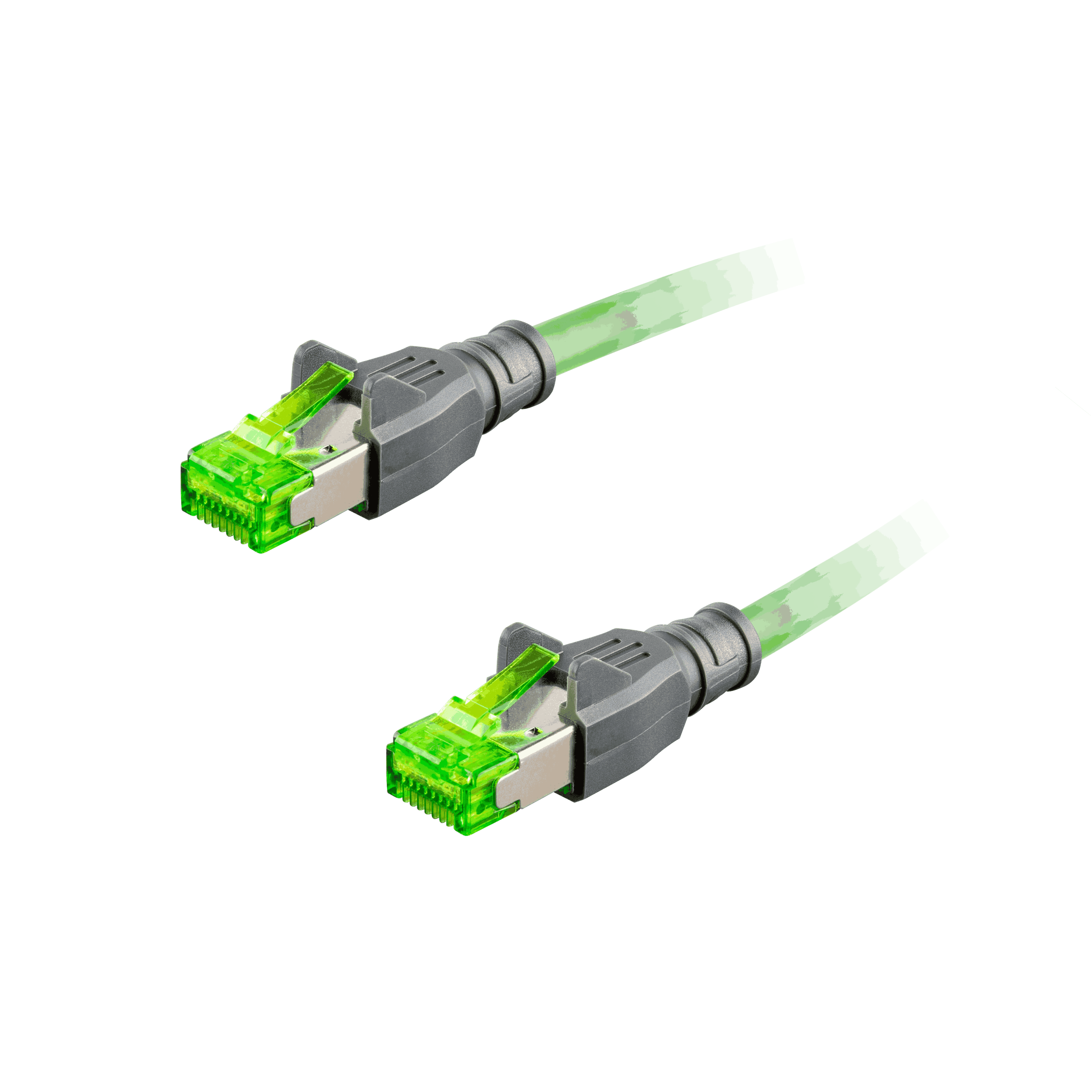

E66XB8607M010 Ethernet Cordset
Ethernet Cordset,Double-ended,RJ45 8-pin Straight Male,to RJ45 8-pin Straight Male,With PVC green jacket 2 × 2 × 4 ×0.14 mm²(26 AWG) Cable,1 m
In Stock
$17.00
per unit
Applications: Sensors & I/O
Technical Data
| Rated voltage | 30 V |
| Rated current | 0.5 A |
| The head material | TPU |
| Nut/bolt material | Zinc die-casting – Nickel-plated copper |
| Coating contact material | Gold-plated copper |
| Material contact | PC |
| Cable jacket material | PVC |
| Cable jacket color | green |
| Wire insulation material | PE |
| Wire insulation color | WH/OG, OG, WH/GN, GN, WH/BN, BN, WH/BU, BU |
| Shielded/Unshielded | YES |
| Drag chain | Fixed installation |
| Cable length | 1.0 m |
| IP rating | IP20 |
| Wire cross-section | 4 × 2 × 26 AWG |
| Product type | Ethernet Cordset |
| Termination type | Double-end |
| Head 1 Type | RJ45 |
| Head 1 Coding | RJ45 |
| Head 1 Number of contacts | 8 |
| Head 1 Shape | Straight |
| Head 1 Gender | Male |
| Head 2 Type | RJ45 |
| Head 2 Coding | RJ45 |
| Head 2 Number of contacts | 8 |
| Head 2 Shape | Straight |
| Head 2 Gender | Male |
