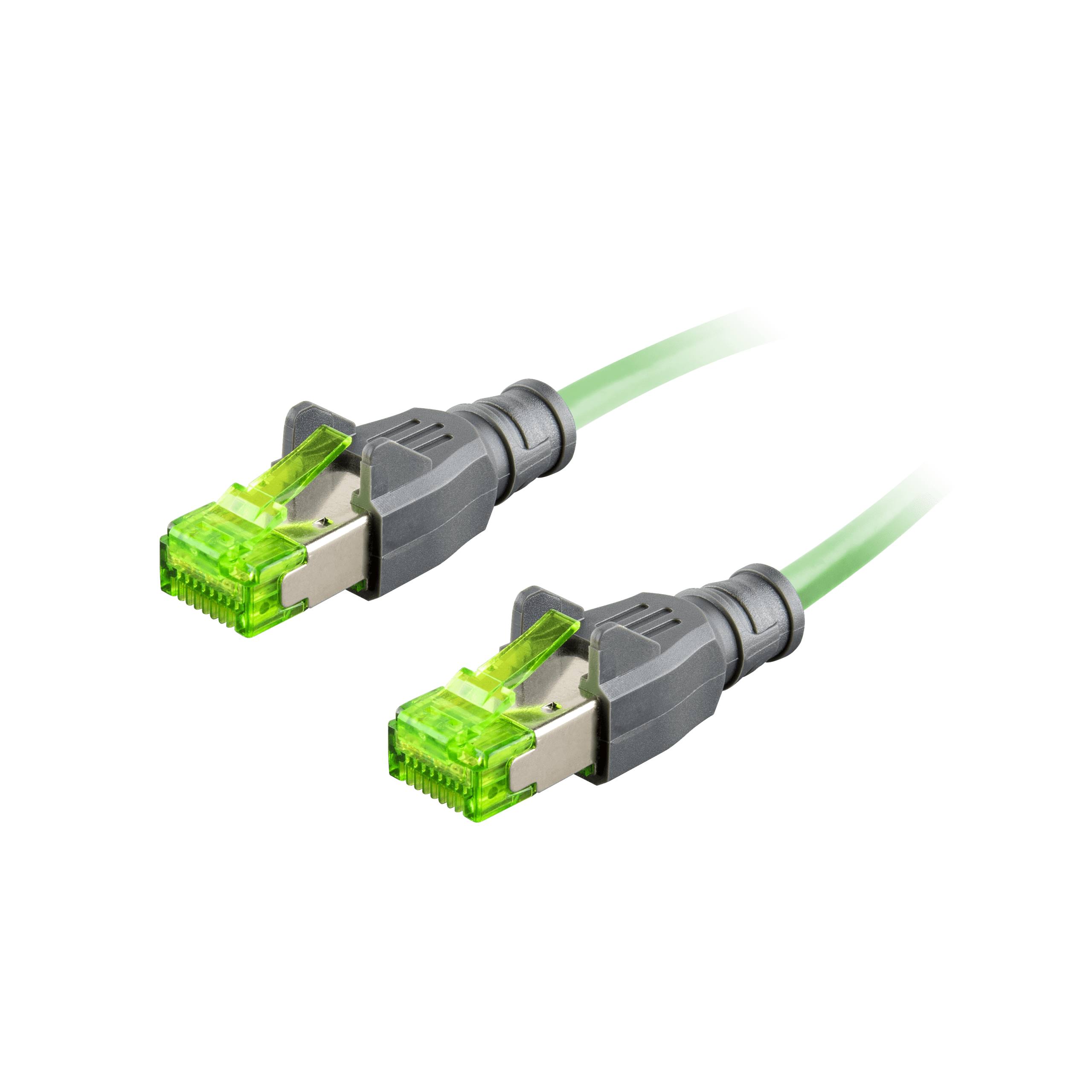

E66DA4003M600 Ethernet Cordset
Ethernet Cordset,Double-ended,RJ45 4-pin Straight Male,to RJ45 4-pin Straight Male,With PUR green jacket 1 × 4 × 0.34 mm² (22 AWG) 5 million bending cycles Cable,60 m
In Stock
$376.24
per unit
Applications: Sensors & I/O
Technical Data
| Connector type | RJ45-RJ45 |
| Shape | RJ45-RJ45 |
| Wire insulation color | YE, WH, OG, BU |
| Coding | RJ45-RJ45 |
| Gender | RJ45-RJ45 |
| LED indicator | NO |
| Number of contacts | 4 |
| Cable jacket color | Green |
| Shielded/Unshielded | YES |
| Cable length | 60 m |
| Cable jacket material | PUR |
| Nut/bolt material | Nickel plated copper |
| Coating contact material | Gold-plated copper |
| Rated current | 1.5 A |
| IP rating | IP67 |
| Drag chain | Bending 5 Million |
| Wire insulation material | PVC |
| Material contact | TPU |
| The head material | TPU |
| Rated voltage | 30 V DC |
