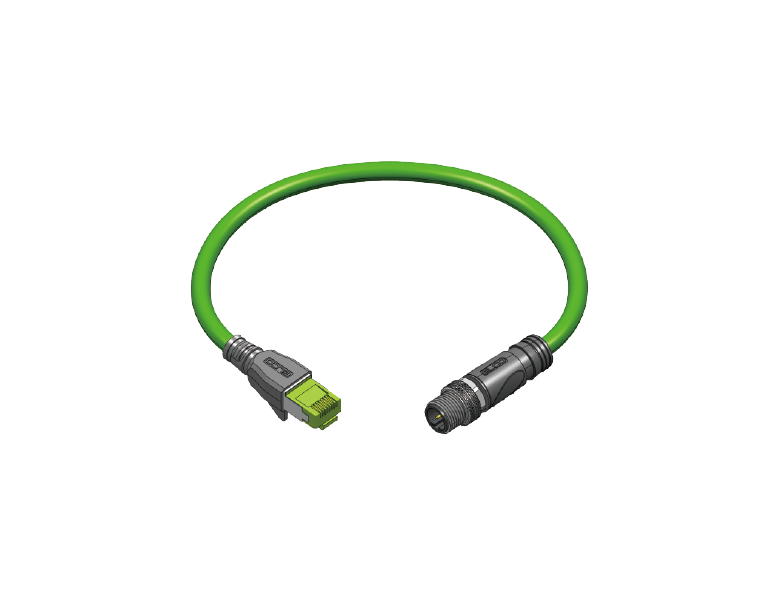

E16DA4003M070 Ethernet Cordset
Ethernet Cordset,Double-ended, M12 D-code 4-pin Straight Male,to RJ45 4-pin Straight Male,With PUR green jacket 1 × 4 × 0.34 mm² (22 AWG) 5 million bending cycles Cable,7 m
In Stock
$56.32
per unit
Applications: Sensors & I/O
Technical Data
| Cable jacket material | PUR |
| Wire insulation color | YE, WH, OG, BU |
| Wire insulation material | PVC |
| Cable jacket color | Green |
| IP rating | IP67 |
| The head material | TPU |
| Coating contact material | Gold-plated copper |
| Shielded/Unshielded | YES |
| Cable length | 7 m |
| Nut/bolt material | Zinc alloy die casting, Nickel plated copper |
| Drag chain | Bending 5 Million |
| Material contact | TPU |
| Rated voltage | 30 V DC |
| LED indicator | NO |
| Rated current | 1.5 A |
