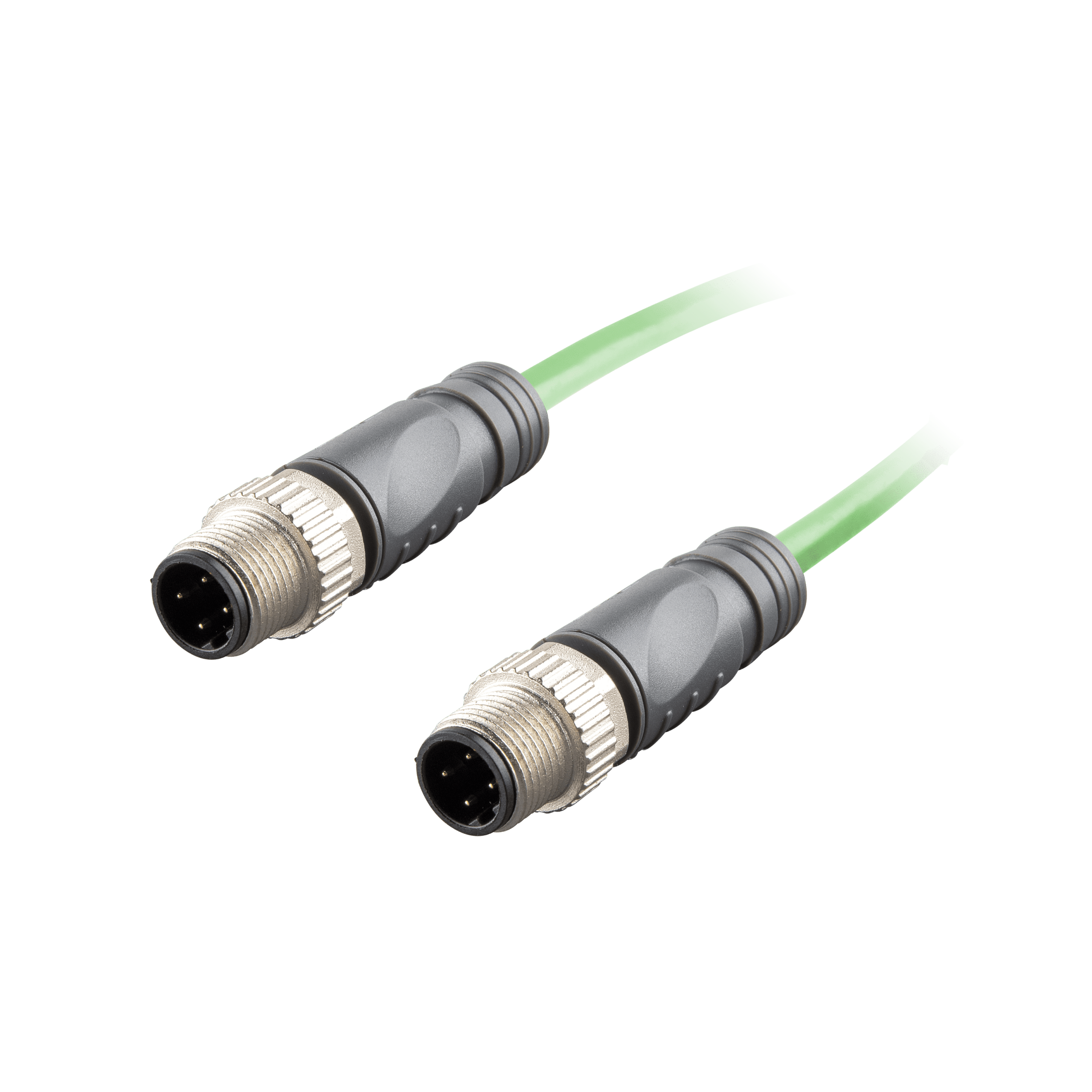

E11DA4009M020 Ethernet Cordset
Ethernet Cordset,Double-ended, M12 D-code 4-pin Straight Male,to M12 D-code 4-pin Straight Male,With PUR green jacket 1 × 4 × 0.14 mm² (26 AWG) 5 million bending cycles Cable,2 m
In Stock
$28.90
per unit
Applications: Sensors & I/O
Technical Data
| Number of contacts | 4 |
| Cable jacket color | green |
| Wire cross-section | 2 × 2 × 26 AWG |
| Coding | D-code – D-code |
| Shape | Straight-Straight |
| Gender | Male-Male |
| Rated voltage | 30 V DC |
| Rated current | 4 A |
| LED indicator | NO |
| The head material | TPU |
| Nut/bolt material | Zinc die casting |
| Coating contact material | Gold plated copper |
| Material contact | TPU |
| Cable jacket material | PUR |
| Wire insulation material | PVC |
| Wire insulation color | YE, WH, OG, BU |
| Shielded/Unshielded | YES |
| Drag chain | 5 million bending cycles |
| Cable length | 2 m |
| IP rating | IP67 |
| Connector type | M12-M12 |
