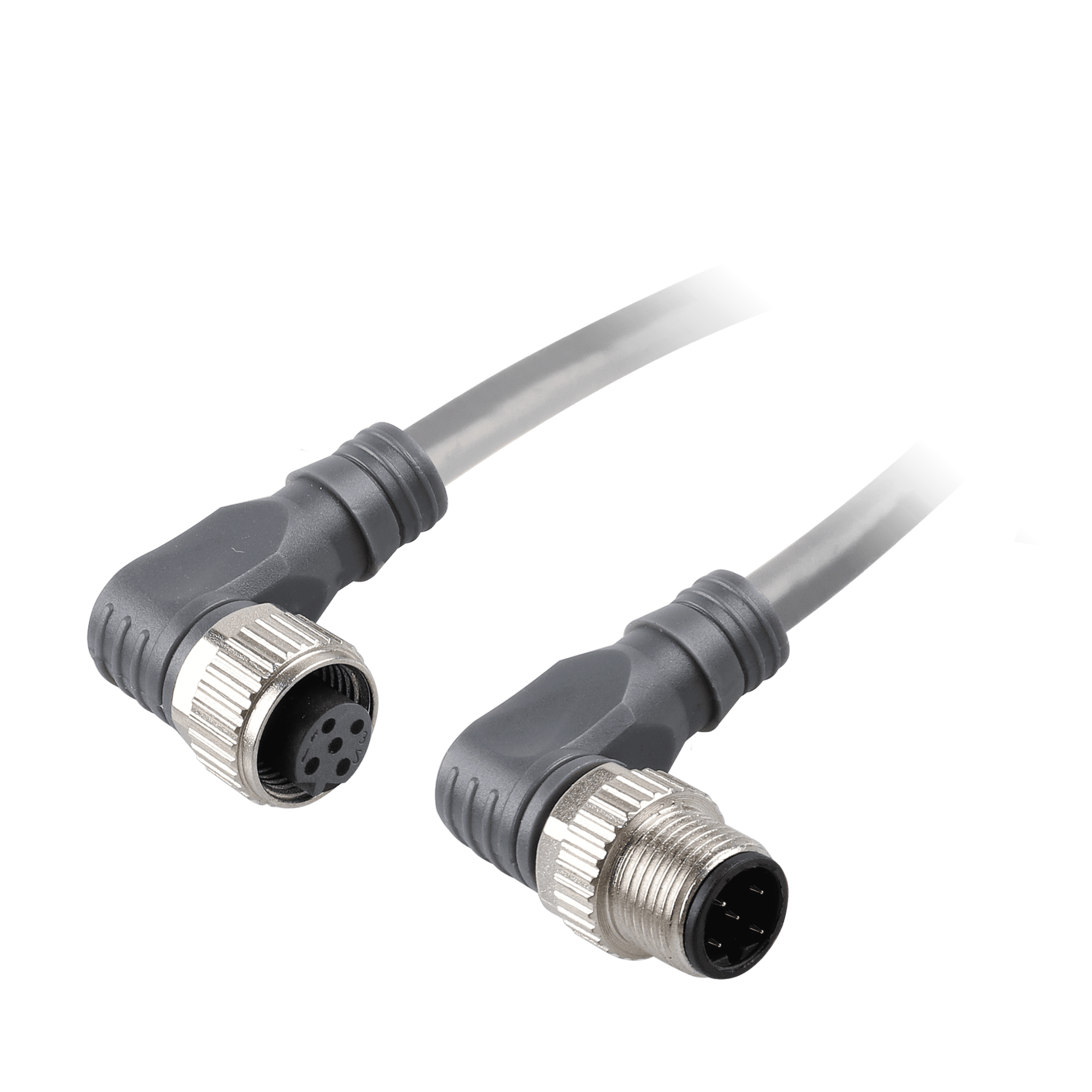

DND33D-M020 DeviceNet Cordset
Elco Automation | DND33D-M020

DND33D-M020 DeviceNet Cordset

DeviceNet Cordset, Double-ended, Female Angled, M12, 5-pole – Male Angled, M12, 5-pole, PUR Violet 1x2x24awg + 1x2x22awg, 2m, 5 million Bending Cycles

In Stock
$34.32 per unit

Applications: Sensors & I/O

Technical Data

Connector type M12
Number of contacts 5
Coding A-code
Rated voltage 250 V AC/DC
Rated current 4 A
Shielded/Unshielded YES
Coating contact material Gold-plated copper
Material contact TPU
Cable jacket material PUR
Wire insulation color RD, BK, WH, BU
Drag chain 5 million bending cycles
IP rating IP67
Cable length 2 m
Nut/bolt material Zinc die casting
Shape Angled
The head material TPU
Wire insulation material PE
Cable jacket color grey
Gender Female-Male
LED indicator NO
Wire cross-section 2 × 24 AWG + 2 × 22 AWG

Documentation

Certificates & Compliance

  • Icon

    UL - ELCO_UL-DeviceNet Connector.pdf

    1 file(s) 458.92 KB
    Download
  • Icon

    CE - ELCO_Communication Connector_CE.pdf

    1 file(s) 1,000.07 KB
    Download

Datasheets

  • Icon

    Datasheet - ELCO_DeviceNet Connector_DataSheet_EN.pdf

    1 file(s) 3.13 MB
    Download
