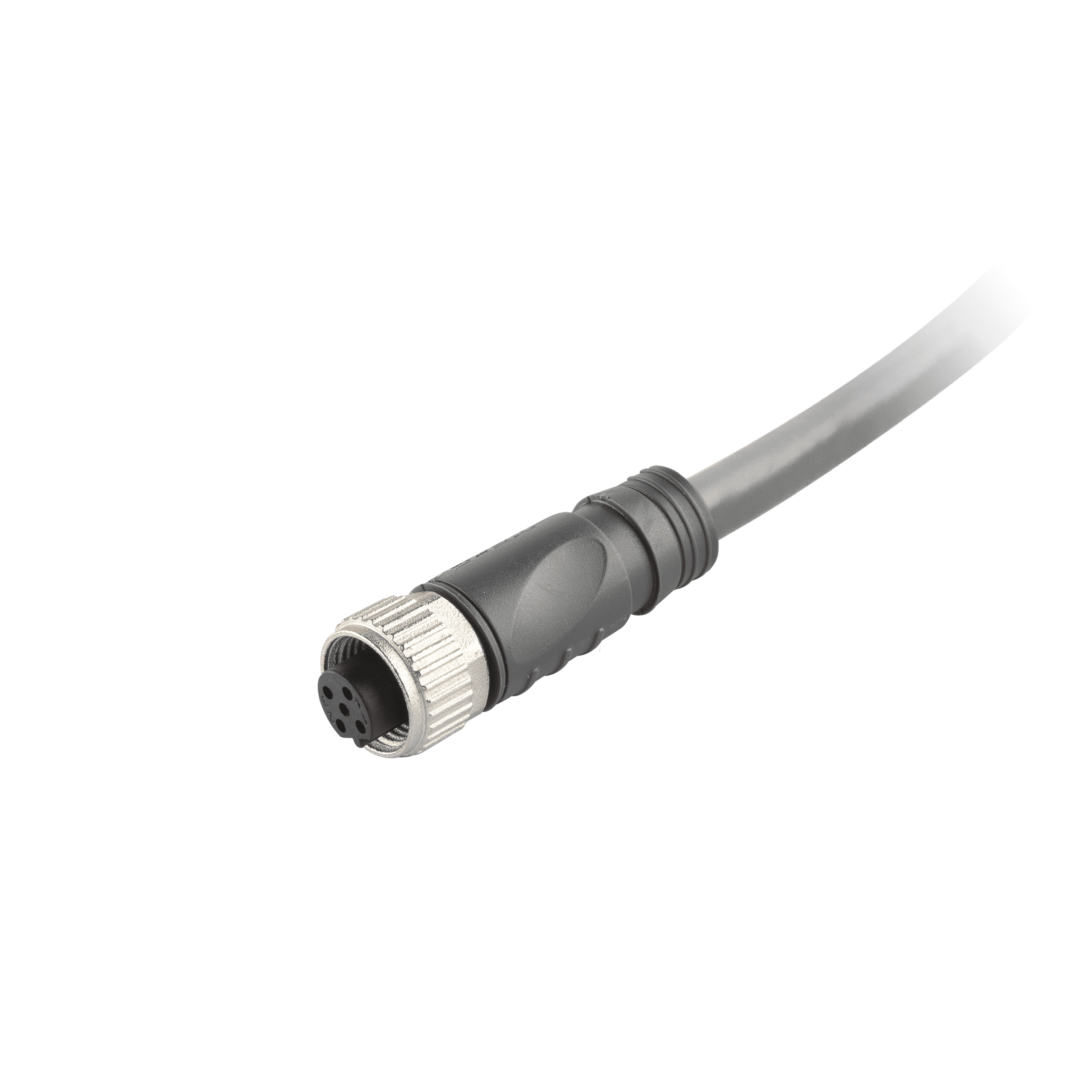

DND22D-M005 DeviceNet Cordset
DeviceNet Cordset, Double-ended, Female Straight, M12, 5-pole – Male Straight, M12, 5-pole, PUR Violet 1x2x24awg + 1x2x22awg, 0.5m, 5 million Bending Cycles
In Stock
$21.21
per unit
Applications: Sensors & I/O
Technical Data
| Shielded/Unshielded | YES |
| Connector type | M12 |
| Number of contacts | 5 |
| Coding | A-code |
| Shape | Straight |
| The head material | TPU |
| Cable jacket material | PUR |
| Wire insulation material | PE |
| Wire insulation color | RD, BK, WH, BU |
| Drag chain | 5 million bending cycles |
| IP rating | IP67 |
| Cable length | 0.5 m |
| Cable jacket color | grey |
| Material contact | TPU |
| Nut/bolt material | Zinc die casting |
| Coating contact material | Gold-plated copper |
| Rated voltage | 250 V AC/DC |
| Gender | Female-Male |
| LED indicator | NO |
| Rated current | 4 A |
| Wire cross-section | 2 × 24 AWG + 2 × 22 AWG |
