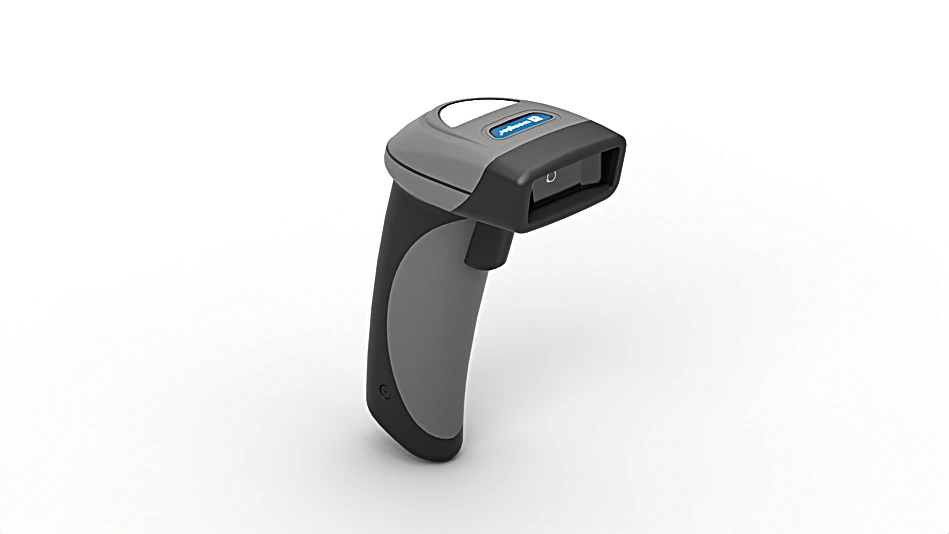

CSMH010 1D/2D Handheld Scanner

1D/2D Handheld Scanner

In Stock
$1,697.23 per unit

Applications: Machine Vision

Description

These wenglor handheld scanners are suitable for mobile use with needle punched, printed, laser printed and etched 1D and 2D barcodes on a wide variety of different materials. Good scanning results are even obtained with poor code quality. Readable code types: DataMatrix, DataMatrix rectangle extension, QR codes, micro QR codes, QR model 1, Aztec code, PDF417, composite, Grid Matrix, Maxicode, micro PDF417, PDF417, code 11, code 32, code 39, code 49, code 128, interleaved 2 of 5, Telepen, MSI Plessey, Plessey, Pharmacode, UPC/EAN/JAN, Codabar, Codablock F, GS1 Databar, GS1 composite, Planet, Code93, BC412, Postal Codes.

Features at a Glance

  • Decoding of DPM codes (e.g. needle-punched, etched or embossed codes)
  • Direct feedback after decoding (vibration, visual/acoustic signal)
  • Resistant to cleaning agents
  • Quick alignment and capture of 1D/2D codes

Technical Data

Optical Data

Read Range 5 … 265 mm
Resolution 1,280 × 960 Pixel
Light Source Red Light
Max. Ambient Light 97,000 Lux
Barcode Printing Contrast > 15 %

Environmental conditions

Temperature Range -20 … 55 °C

Electrical Data

Supply Voltage 5 V DC
Current Consumption (Ub = 5V) < 350 mA
Interface RS-232
Transmission rate 115.2 Kbit/s
Acoustic signal yes
Vibration signal yes
Visual signal yes

Mechanical Data

Housing Material Plastic, PC
Degree of Protection IP54
Connection Prewired
Cable length (L) 2.4 m
Shock Resistance > 50 *
Halogen-free yes
Weight 564 g

General Data

DPM codes yes

Output

RS-232 Interface yes

Standards and certificates

Complementary Products

  • Fieldbus Gateway ZAGxxxN01, EPGG001
  • Interface Cable ZDNV001
  • Interface Cable ZDNV002
  • Connection Line ZCLL001
  • Software

Documentation

CAD data

Datasheets

Declarations of Conformity / Approvals

ECAD data

Operating instructions
