CP70QXVT80S806 Laser Distance Sensor Triangulation
Laser Distance Sensor
In Stock
$955.00
per unit
Applications: Sensors & I/O
Description
These sensors work with a high resolution CMOS line and DSP technology and calculate the distance via an angle measurement. This virtually eliminates switching point differences caused by material, color and brightness. Two independent switching outputs are available, at which two switching thresholds and one on-delay or off-delay time can be set in 10 ms increments. Sensor functions can be activated and values can be output via the RS-232 interface.
Features at a Glance
- CMOS line array
- Highly accurate switching distance
- Minimal switching hysteresis
- Switching point independent of material, color and brightness
Technical Data
Optical Data
| Range | 800 mm |
| Setting Range | 60 … 800 mm |
| Switching Hysteresis | < 1 % |
| Light Source | Laser (red) |
| Wavelength | 655 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 2 |
| Max. Ambient Light | 10,000 Lux |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 50 mA |
| Switching Frequency | 150 Hz |
| Response Time | 3,300 µs |
| On-/Off-Delay (RS-232) | 0 … 1 s |
| Temperature Drift | < 80 µm/K |
| Temperature Range | -25 … 60 °C |
| Number of Switching Outputs | 2 |
| Switching Output Voltage Drop | < 1.5 V |
| Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Teach Mode | HT, VT, TP |
| Interface | RS-232 |
| Transmission rate | 38,400 Bd |
| Protection Class | III |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Plastic, ABS Plastic, PC |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 8-pin |
| Optic Cover | Plastic, PMMA |
| Weight | 45 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × laser warning sign 1 × sensor |
Output
| Error Output | yes |
| Configurable as PNP/NPN/Push-Pull | yes |
| Switchable to NC/NO | yes |
| RS-232 Interface | yes |
Adjustable parameters
| Output | Error Output Push-pull NPN PNP |
| Other parameters | Off-delay On-delay Exposure time Laser light Switching hysteresis Teach-in mode |
| All other parameters can be found in the product documentation. |
Standards and certificates
      |
Table 1
| Detection Range | 60 mm | 800 mm |
| Spot Size | 0,6 × 2,5 mm | 4 × 10 mm |

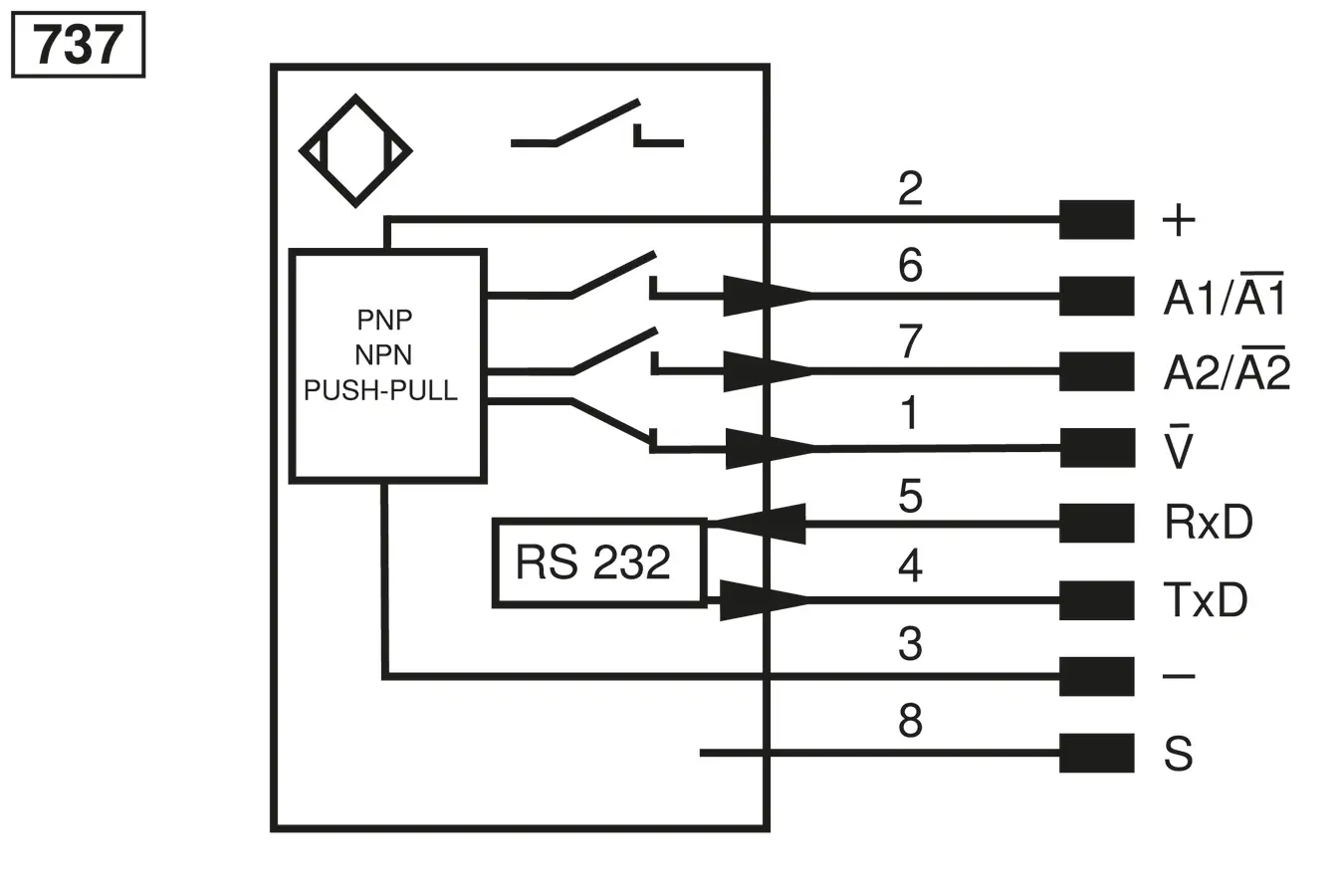

Connection Diagram
 |
Ctrl. Panel
|
07 = Selector Switch
24 = Plus Button 25 = Minus Button 03 = Error Indicator 01 = Switching Status Indicator |
