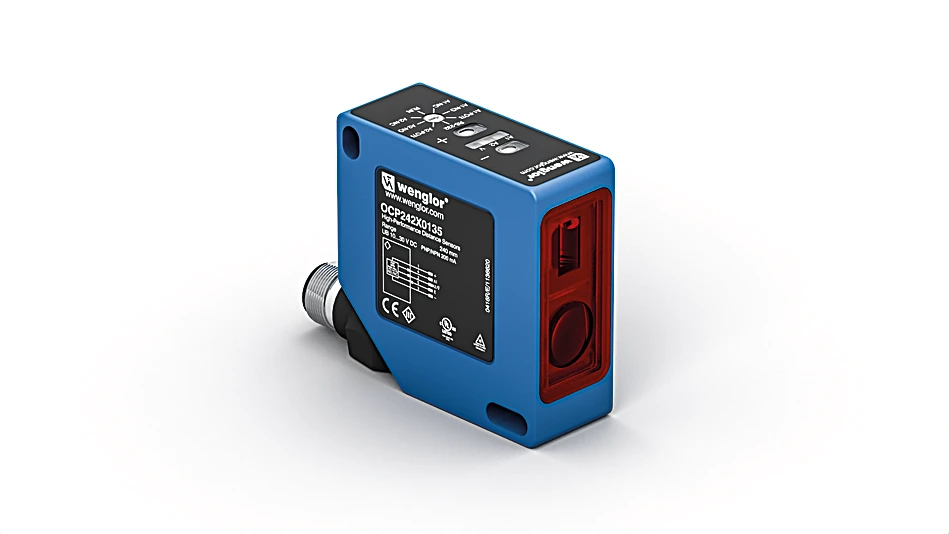

CP24MHT80 Laser Distance Sensor Triangulation
Laser Distance Sensor
In Stock
$1,499.00
per unit
Applications: Sensors & I/O
Description
These sensors work with a high-resolution CMOS line and DSP technology and determine distance using angular measurement. As a result, material, color and brightness related measurement differences are virtually eliminated. Integrated analogue output can be configured for voltage 0…10 V (10…0 V) or current 4…20 mA (20…4 mA).
Features at a Glance
- Response time: < 660 µs (speed-mode)
- Zoom function
- Measured value independent of material, color and brightness
- CMOS line array
Technical Data
Optical Data
| Working Range | 40 … 160 mm |
| Measuring Range | 120 mm |
| Reproducibility maximum | 250 µm |
| Reproducibility: 1 Sigma | 60 µm |
| Linearity Deviation | 350 µm |
| Light Source | Laser (red) |
| Wavelength | 660 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 2 |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | see Table 1 |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 80 mA |
| Measuring Rate | 1,500 /s |
| Measuring Rate (Resolution-Mode) | 600 /s |
| Response Time | 660 µs |
| Response Time (Resolution Mode) | < 1,660 µs |
| Temperature Drift | < 30 µm/K |
| Temperature Range | -25 … 50 °C |
| Analog Output | 0…10 V |
| Load Current Voltage Output | < 1 mA |
| Current Output Load Resistance | < 500 Ohm |
| Interface | RS-232 |
| Transmission rate | 38,400 Bd |
| Protection Class | III |
| FDA Accession Number | 0820589-000 |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Plastic, ABS Plastic, PC |
| Optic Cover | Plastic, PMMA |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 8-pin |
| Weight | 45 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 713.97 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × laser warning sign 1 × sensor |
Output
| Error Output | yes |
| Analog Output | yes |
| RS-232 Interface | yes |
Adjustable parameters
| Analog output | 0…10 V 4…20 mA |
| Other parameters | Scale analog output Exposure time Filter Resolution mode Laser light Speed mode |
| All other parameters can be found in the product documentation. |
Standards and certificates
      |
Table 1
| Working Distance | 40 mm | 160 mm |
| Spot Size | 0,5 × 1,2 mm | 1 × 2,5 mm |

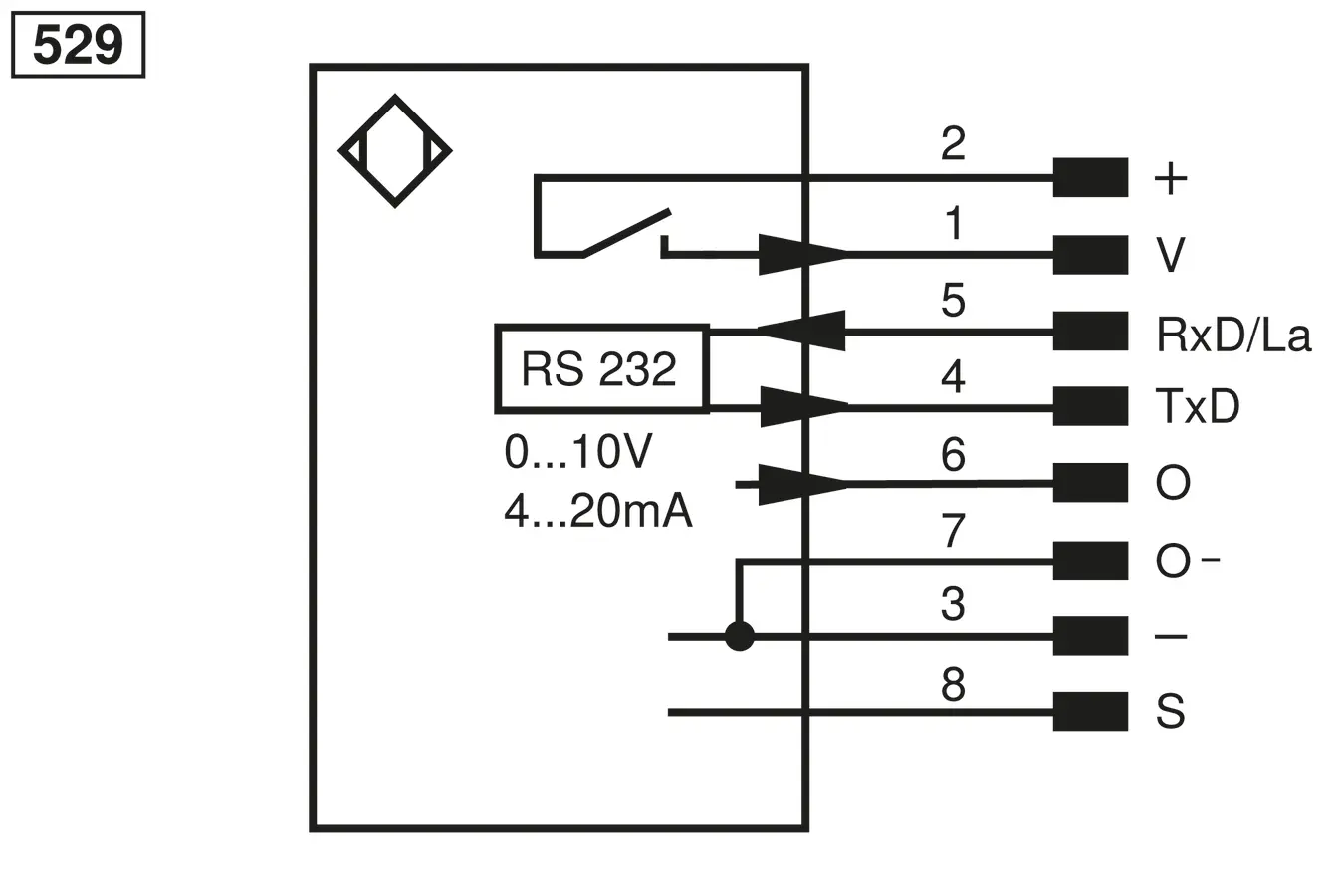

Connection Diagram
 |
Ctrl. Panel
|
12 = Analog Output Indicator
07 = Selector Switch 03 = Error Indicator 24 = Plus Button 25 = Minus Button 63 = Analog Output Current Indicator |
