Description
- Mounted outside the control cabinet, with all terminal connections housed inside
- IP66-rated protection
Technical Data

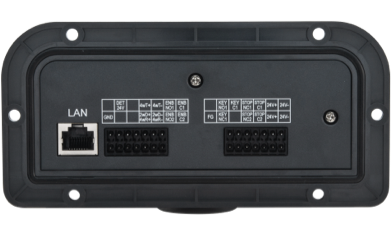

| Cable Connector | 1 |
| Wiring Terminal | 2 |
| Enclosure | Plastic |
| Dimensions WxHxD | 157.9x 75.9 x 55.2 mm |
| Panel Cutout | 119.4 x 29.95 mm |
| Weight | Approx. 0.2 kg |
| Mount | Use six M4 screws, mounting hole size is 4.6 mm |
| Protection Structure | IP66 Compliant Front Side |
| Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) |
| Operating Temperature | 0° ~ 55°C (32° ~ 131°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| CE | CE marked |
| UL | cULus Listed |
