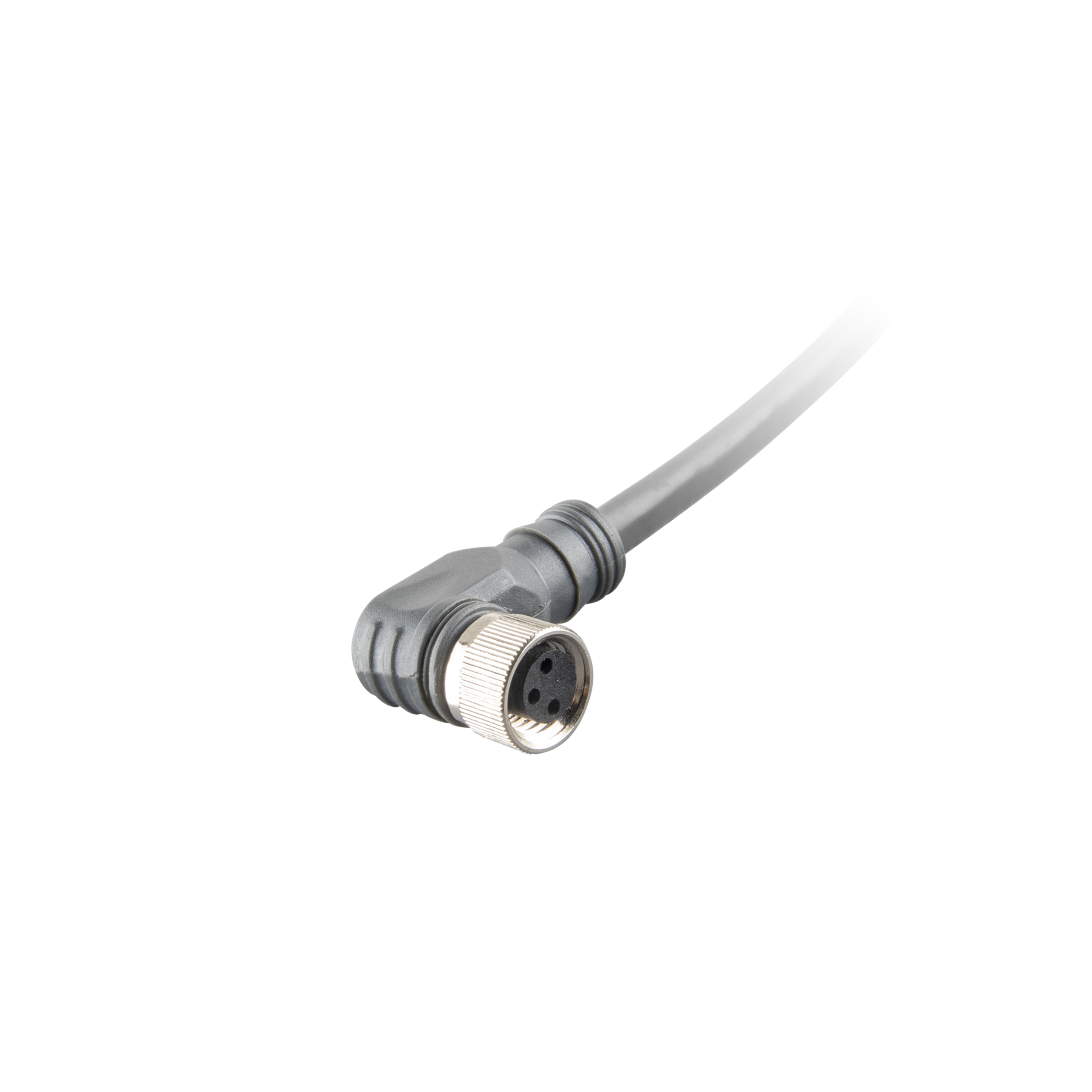

CBO8.3-1/P Sensor-Actuator Cordset
Sensor-Actuator Cordset, Single-ended, M8 A-code 3-pin Angled Female, with PUR grey jacket 0.25mm² (24 AWG) 5 million bending cycles cable, 1 m
In Stock
$7.04
per unit
Applications: Sensors & I/O
Technical Data
| Product type | Sensor-Actuator Cordset |
| Termination type | Single-end |
| Head 1 Type | M8 |
| Head 1 Coding | A-code |
| Head 1 Number of contacts | 3 |
| Head 1 Shape | Angled |
| Head 1 Gender | Female |
| The head material | TPU |
| Nut/bolt material | Zinc die casting |
| Coating contact material | Gold plated copper |
| Material contact | TPU |
| Rated voltage | 60 V AC/DC |
| Rated current | 4 A |
| Wire cross-section | 0.25 mm² (24 AWG) |
| LED indicator | NO |
| Cable jacket material | PUR |
| Cable jacket color | grey |
| Wire insulation material | PP |
| Wire insulation color | BN, BU, BK |
| Shielded/Unshielded | NO |
| Drag chain | 5 million bending cycles |
| Resistant to welding sparks | NO |
| Flex & Torsion | NO |
| IP rating | IP67 |
| Cable length | 1 m |
