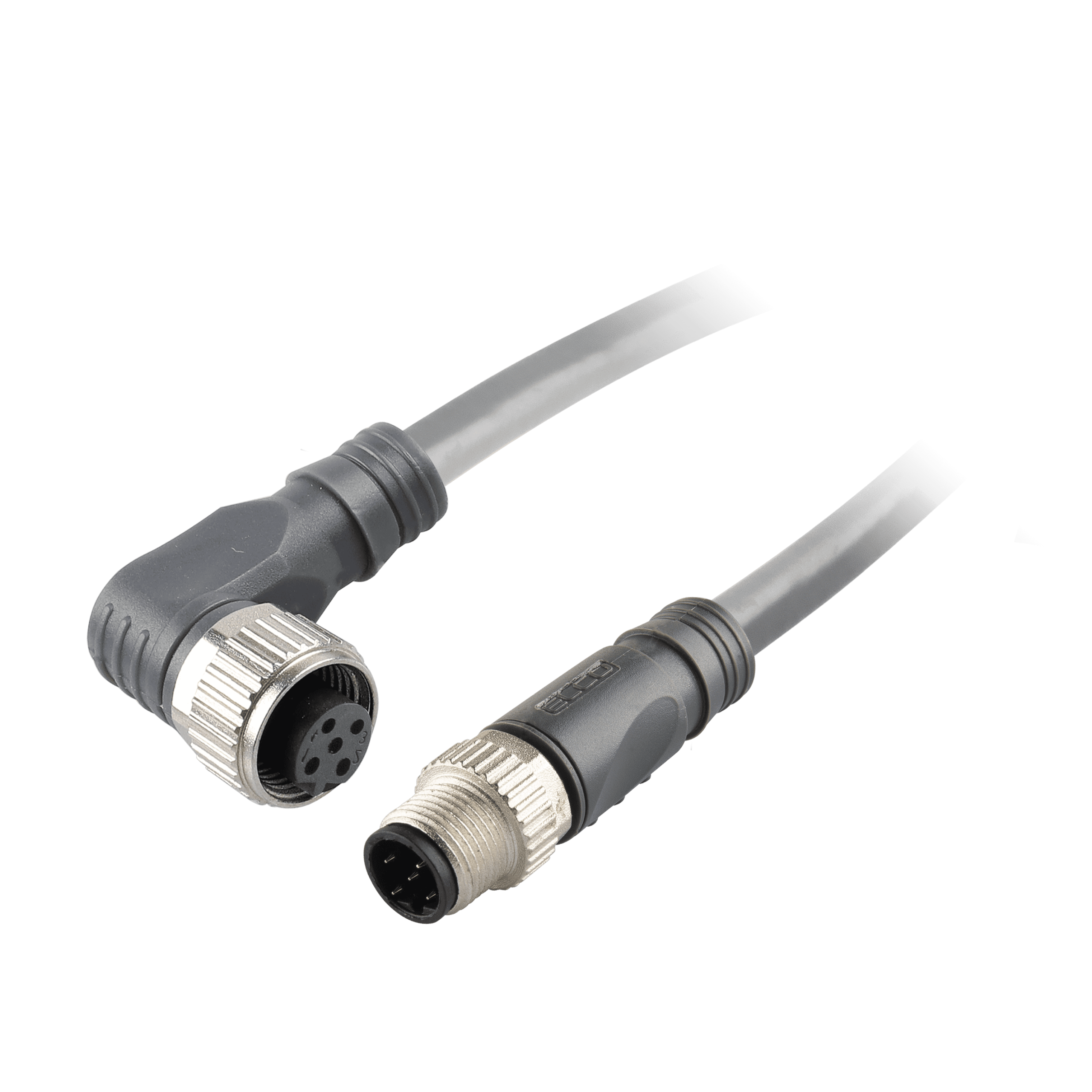

CBO12.5-10-C12.5/L Sensor-Actuator Cordset
Sensor-Actuator Cordset, Double-ended, M12 A-code 5-pin Angled Female, with PNP LED, to M12 A-code 5-pin Straight Male, with PVC grey jacket 0.34mm² (22 AWG) cable, 10 m
In Stock
$25.15
per unit
Applications: Sensors & I/O
Technical Data
| Nut/bolt material | Zinc die casting |
| Wire cross-section | 0.34 mm² (22 AWG) |
| The head material | TPU |
| Coating contact material | Gold plated copper |
| LED indicator | PNP |
| Cable jacket material | PVC |
| Wire insulation material | PVC |
| Wire insulation color | BN, WH, BU, BK, GY |
| Material contact | TPU |
| Rated voltage | 30 V DC |
| Cable jacket color | grey |
| Rated current | 4 A |
| IP rating | IP67 |
| Shielded/Unshielded | NO |
| Cable length | 10 m |
| Drag chain | Fixed installation |
| Flex & Torsion | NO |
| Resistant to welding sparks | NO |
| Termination type | Double-end |
| Head 1 Type | M12 |
| Product type | Sensor-Actuator Cordset |
| Head 1 Coding | A-code |
| Head 1 Number of contacts | 5 |
| Head 1 Shape | Angled |
| Head 1 Gender | Female |
| Head 2 Type | M12 |
| Head 2 Coding | A-code |
| Head 2 Number of contacts | 5 |
| Head 2 Shape | Straight |
| Head 2 Gender | Male |
