Technical Data
Electrical Data
| Supply Voltage |
10 … 30 V DC |
| Current Consumption (Ub = 24 V) |
< 2 mA |
| Switching Output/Switching Current |
200 mA |
| Switching Frequency |
5 kHz |
| Response Time |
100 µs |
| Residual Current Switching Output |
< 50 µA |
| Short Circuit Protection |
yes |
| Reverse Polarity Protection |
yes |
| Overload Protection |
yes |
Mechanical Data
| Connection 1 |
Socket, straight |
| Connection mode 1 |
M8 × 1, 4-pin |
| Connection 2 |
stripped |
| Torque |
M8: 0,4 Nm |
| Cable length (L) |
2 m |
| Outer diameter (d) |
4.8 mm |
| Wire cross-section |
0.25 / 0.34 mm² |
| Degree of Protection |
IP67 |
| Temperature Range |
-10 … 60 °C |
| Cable Jacket Material |
PVC |
| Material Wire Insulation |
Plastic, PVC |
| Material Sleeve Nut |
Brass, nickel-plated |
| Weight |
129 g |
General Data
| Scope of delivery |

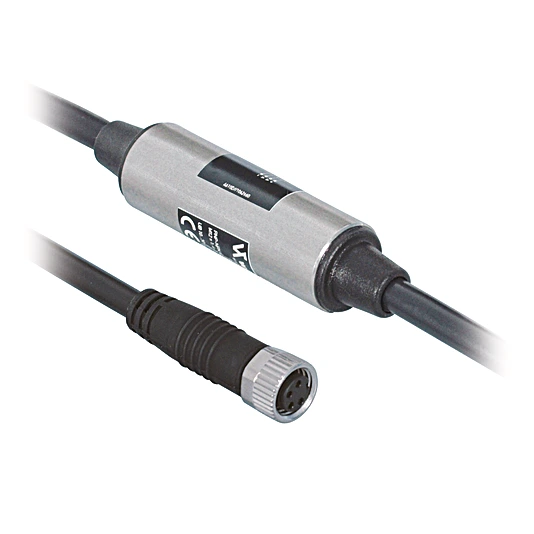

1 × PNP-NPN converter |
| Packaging unit |
1 Piece |
