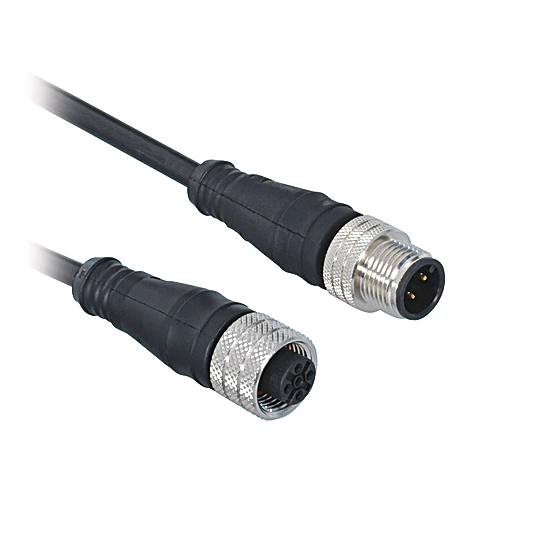

BG2SG2V1-2M Connection Cable M12 × 1; 4-pin
Connection Cable
In Stock
$36.80
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- Socket M12 × 1, straight
- Plug M12 × 1, straight
Technical Data
Mechanical Data
| Connection 1 | Socket, straight |
| Connection mode 1 | M12 × 1, 4-pin |
| Connection 2 | Plug, straight |
| Connection mode 2 | M12 × 1, 4-pin |
| Torque | M12: 0,8 Nm |
| Coding | A-coding |
| Cable length (L) | 2 m |
| Outer diameter (d) | 5 mm |
| Wire cross-section | 0.25 mm² |
| Degree of Protection | IP67 |
| Temperature Range | -25 … 80 °C |
| Cable Jacket Material | Plastic, PVC |
| Material Wire Insulation | Plastic, PVC |
| Material Sleeve Nut | Brass |
| Weight | 96 g |
General Data
| Scope of delivery | 1 × line |
| Packaging unit | 1 Piece |
Standards and certificates
 |
Pin assignment
  |
Connection Diagram
 |
