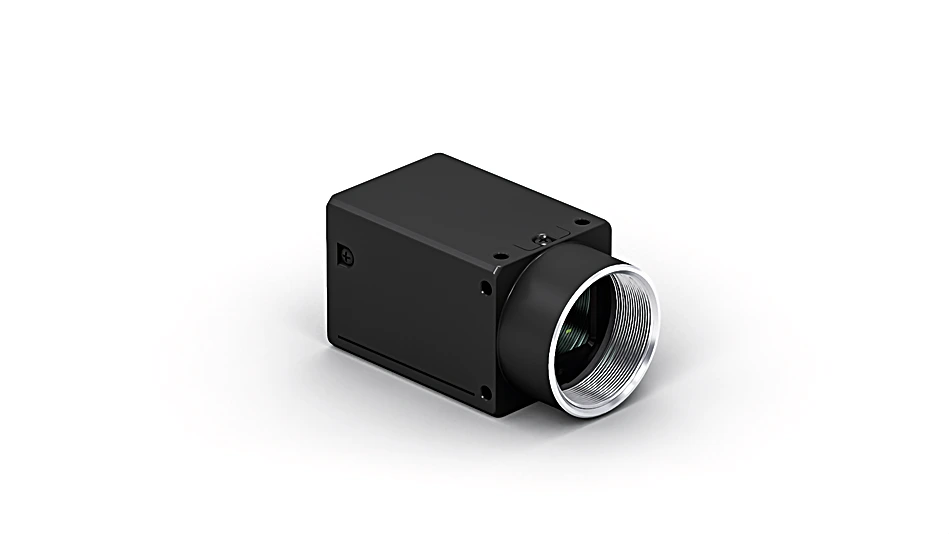

BBZK001 Machine Vision Camera
Machine Vision Camera
In Stock
$3,678.77
per unit
Applications: Machine Vision
Description
Machine Vision Cameras make it possible to record images in vision applications. The images are read out via a 1-gigabit Ethernet interface. The camera can be connected via a PoE port so that only one cable is required. The small and rugged housing and the C mount threaded connection can be easily and flexibly integrated. State-of-the-art CMOS sensor technology ensures high resolution and optimum image quality without noise even in difficult lighting conditions.
Features at a Glance
- Image chip with Global Shutter for dynamic applications
- Different lenses can be adapted thanks to standard thread
- Compact and robust housing in 29 × 56.5 × 29 mm format
- Flexible mounting options from 4 sides
Technical Data
Optical Data
| Resolution | 1,440 × 1,080 Pixel |
| Resolution | 1.6 MP |
| Aspect Ratio | 4:3 |
| Pixel Size | 3.45 × 3.45 µm |
| Sensor Type | CMOS |
| Sensor Designation | Sony IMX296 |
| Image Chip | monochrome |
| Image chip size | 1/2,9” |
| Frame rate (fullframe) | < 65.2 fps |
Electrical Data
| Supply Voltage | 9 … 24 V DC |
| Current Consumption (Ub = 24 V) | < 130 mA |
| Temperature Range | -30 … 60 °C |
| Storage temperature | -30 … 70 °C |
| Atmospheric humidity | 20…95 % |
| Number of GPIOs (general purpose I/Os) | 1 |
| GPIO voltage range | 0 … 24 V DC |
| GPIO maximum output current | 25 mA |
| GPIO protective circuit | no |
| Number of Flash Outputs | 1 |
| Flash Output | Optoisolator |
| Number of trigger inputs | 1 |
| Trigger Input | Optoisolator |
| Short Circuit Protection | no |
| Overload Protection | no |
| Supported PoE Classes | 2 |
| Supported PoE Standard | IEEE802.3af |
| Protection Class | III |
Mechanical Data
| Lens thread | C-Mount |
| Housing Material | Aluminum, powder-coated |
| Optic Cover | Glass |
| Degree of Protection | IP40 |
| Connection | HR10; 6-pin |
| Type of Connection Ethernet | RJ45, 8-pin |
| Weight | 103 g |
Function
| Global Shutter | yes |
Interface
| Ethernet | yes |
Output
| PoE | yes |
Standards and certificates
   |

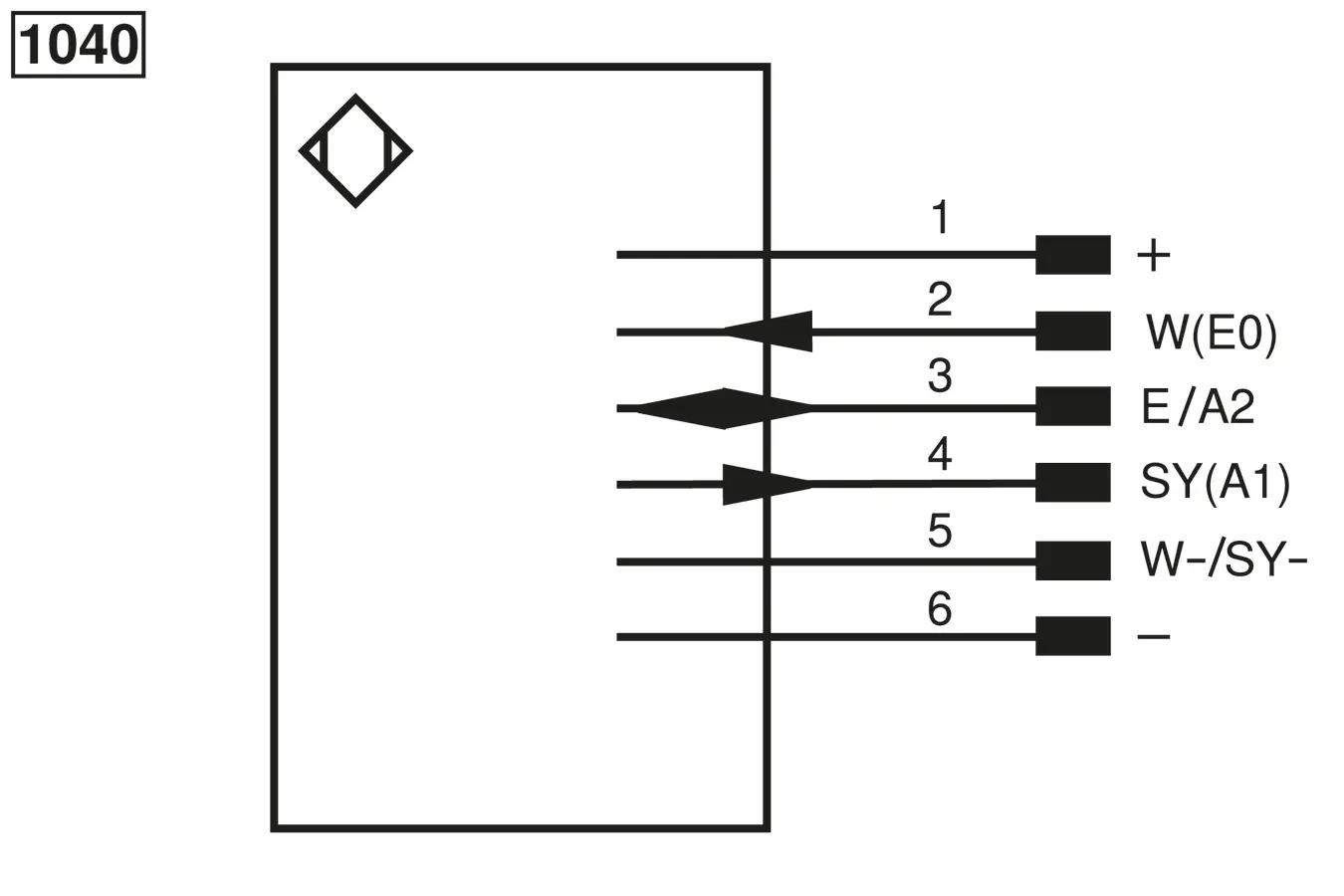

Connection Diagram
 |
