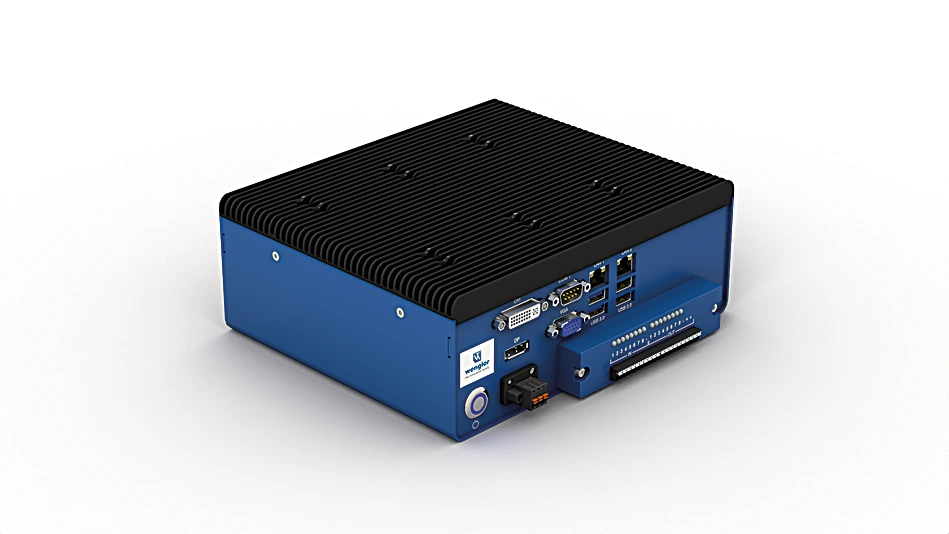

BB1C006 Control Unit uniVision Image
Control Unit
In Stock
$12,576.00
per unit
Applications: Machine Vision
Description
The control unit is a CPU for evaluating data from image processing products. Its compact design ensures the necessary flexibility for easy, space-saving installation, for example in a control cabinet or on a wall. Quick initial start-up is made possible by the pre-installed software. Various standard interfaces are available for the output of results. An extensive range of optional accessories is also available including monitor, keyboard and switch. This product has been discontinued, but is still available as a spare part. Successor
Features at a Glance
- Control unit with installed uniVision Image software
- Compact housing in 85 × 188 × 226 mm format
- Configurable uniVision software for evaluating images from machine vision cameras
- Wear and noise reduction thanks to passive, fanless cooling
Technical Data
Electrical Data
| Supply Voltage | 18 … 36 V DC |
| Current Consumption (Ub = 24 V) | < 1.8 A |
| Temperature Range | 0 … 45 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 100 mA |
| Electrical Isolation | yes |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Number of Digital Inputs | 8 |
| Number of USB 2.0 interfaces | 2 |
| Number of USB 3.0 interfaces | 2 |
| Number of Gigabit Ethernet RJ45 | 2 |
| Number of DVI ports | 1 |
| Number of display port interfaces | 1 |
| Number of VGA ports | 1 |
| Protection Class | III |
Mechanical Data
| Housing Material | Steel, galvanized |
| Degree of Protection | IP50 |
| Wall mounting | yes |
| Weight | 4,172 g |
General Data
| Software | uniVision 2 |
| License package | uniVision Image |
| Processor | Intel® Core i3 |
| Clock Frequency | 2.4 GHz |
| RAM | 4 GB |
| Hard disk | 250 GB SSD |
Operating System
| Linux | yes |
Output
| Ethernet | yes |
| USB Interface | yes |
| DVI-D port | yes |
| VGA Connection | yes |
| Display port connection | yes |
