Description

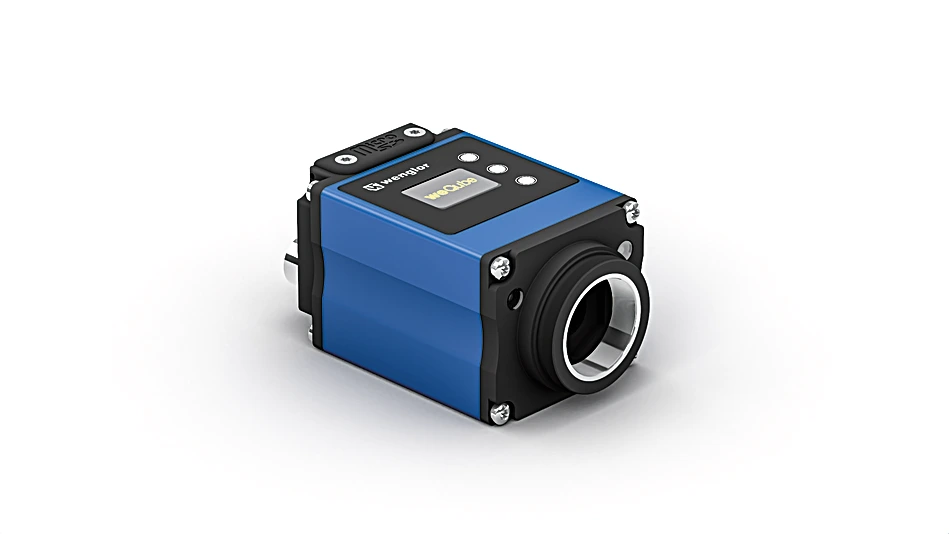

The weQube vision sensor is based on wenglor’s MultiCore technology. The region of interest and tracking functions ensure optimal object sensing. The following image processing modules are available: dimensional accuracy check, sorting process, presence check, object counting, position read-out, pixel counting, pattern matching, filter options and statistics analysis.
Features at a Glance
- Image processing functions
- MultiCore technology
- Pattern matching
Technical Data
Optical Data
| Resolution | 736 × 480 Pixel |
| Resolution | 0.35 MP |
| Image Chip | monochrome |
| Image chip size | 1/3″ |
| Pixel Size | 6 × 6 µm |
| Light Source | External lighting |
| Optics | C mount |
| Frame rate (fullframe) | 25 fps |
Environmental conditions
| Temperature Range | -25 … 55 °C* |
| Atmospheric humidity | 5…95%, non-condensing |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 200 mA |
| Inputs/Outputs | 6 |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 100 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Interface | RS-232/Ethernet |
| Protection Class | III |
Mechanical Data
| Setting Method | Web server |
| Housing Material | Aluminum |
| Degree of Protection | IP67 |
| UL Enclosure Type | 1 |
| Connection | M12 × 1; 12-pin |
| Type of Connection Ethernet | M12 × 1; 8-pin, X-cod. |
| Optic Cover | Plastic, PMMA, ABS |
| Weight | 350 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 263.03 a |
General Data
| Software | uniVision 2 |
| License package | weQubeVision Standard + |
Function
| Presence Check | yes |
| Pixel Comparison | yes |
| Reference Image Comparison | yes |
| Tracking | yes |
| Object detection | yes |
| Dimensional accuracy check | yes |
| Pattern matching | yes |
Output
| PNP NO | yes |
| RS-232 Interface | yes |
| Ethernet | yes |
Adjustable parameters
| Output | Push-pull NPN PNP |
| Circuit | NC NC/NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |

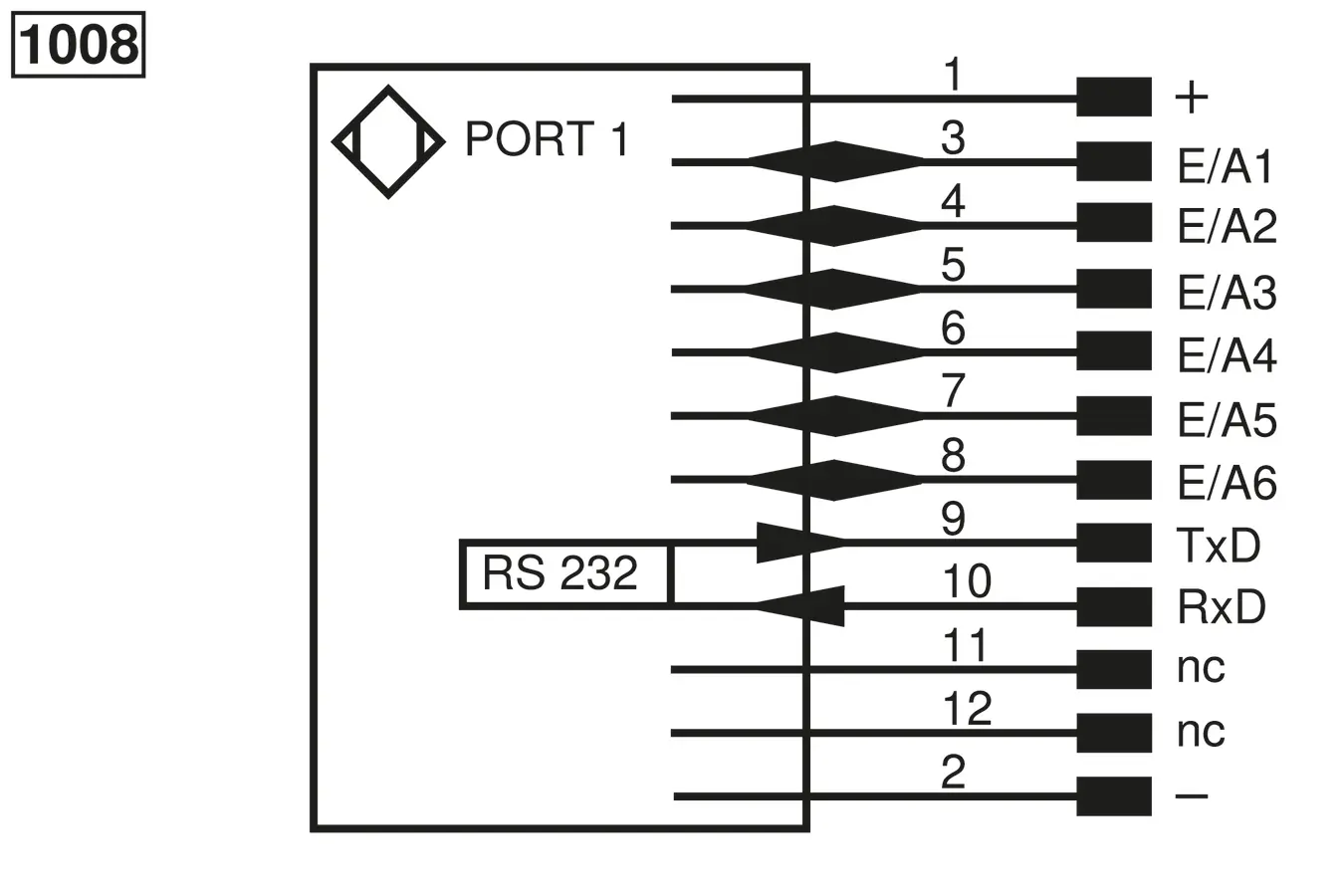

Connection Diagram
 |
Ctrl. Panel
|
20 = Enter key
22 = Up key 23 = Down key 60 = display |
