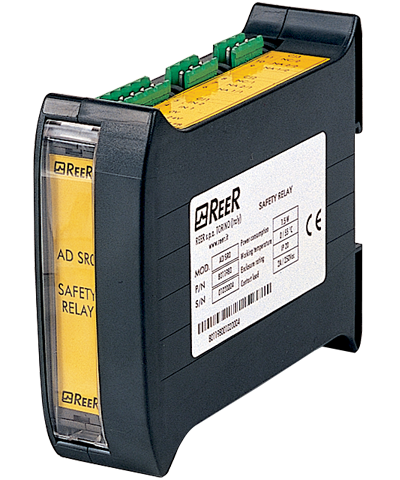

AD SR0
Safety interface, relay with 2 NO + 1 NC contacts
In Stock
$149.71
per unit
Applications: HMI & Controls, Safety Systems
Description
Interface relay module for safety light curtains with feedback input for EDM, such as EOS4 X, Admiral AX, EOS2 X, Vision VX/VXL/MXL and Janus
– Guided-contact safety relays
– Additional NC contact line for the monitoring by light curtain (EDM)
Can only be connected to safety sensors equipped with feedback input for monitoring external relays
Technical Data
Features
| Safety level | PL e |
| Safety level (SIL / PL) | PL e – Cat. 4 |
| Operating temperature (°C) | 0 … 55 |
| Response time (ms) | ≤ 20 |
| Signalling | Nothing |
| Connections | Terminal blocks |
| Safety devices to be connected | Safety devices with feedback input for external relay monitor (EDM), such us EOS4 X , EOS2 X, Admiral AX, Vision VX/VXL/MXL and Janus |
| Safety relay outputs | 2 NO + 1 NC (2A at 250 VAC) |
| Packaging dimensions HxLxW (mm) | 58 x 128 x 118 |
| Product class | B |
| Custom tariff | 8536508090 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Dimensions HxWxD (mm) | 101 x 35 x 120 |
| Degree of protection | IP2X |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
