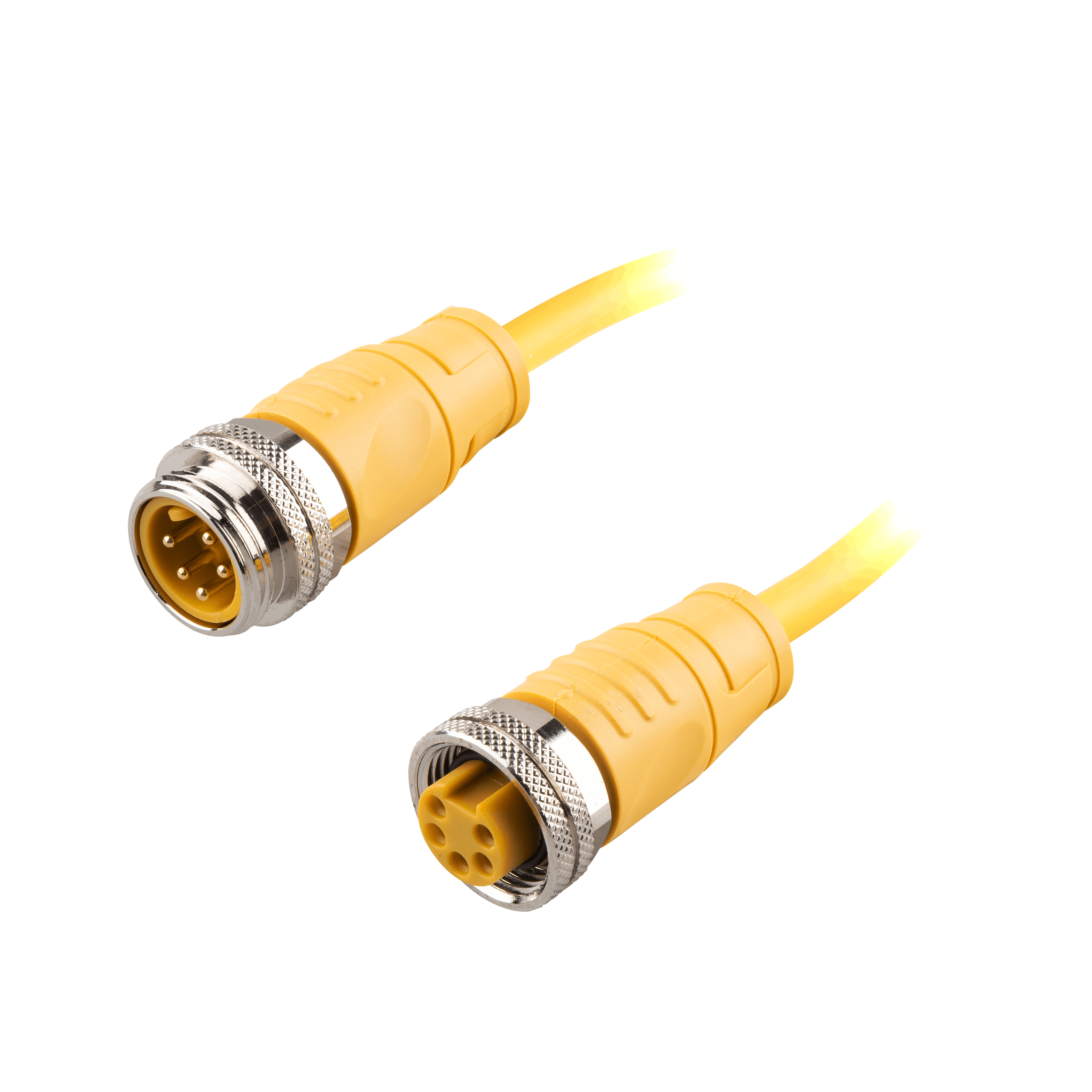

115030A01M040 Power Cordset
Power Cordset, Double-ended, 7/8″ 5-pin Straight Female, to 7/8″ 5-pin Straight Male, with PVC yellow jacket 16 AWG cable, 4 m
In Stock
$69.66
per unit
Applications: Sensors & I/O
Technical Data
| IP rating | IP67 |
| Rated current | 8 A |
| Nut/bolt material | Nickel-plated copper |
| Wire insulation material | PVC |
| Cable jacket color | yellow |
| Coating contact material | Gold-plated copper |
| Wire insulation color | WH,RD,GN,OG,BK |
| Cable jacket material | PVC |
| Cable length | 4 m |
| Rated voltage | 600 V |
| Material contact | TPU |
| Drag chain | Fixed installation |
| The head material | TPU |
| Wire cross-section | 16 AWG |
| Head 1 Type | 7/8" |
