The Connectors

One connection – 1000 possibilities

Innovative, precise, intuitive and fast: Standardize the interface to your industrial robot or your cobot – connect and disconnect any tool within seconds.
  • Standardized interface ISO9409-1
  • Simple and intuitive operation
  • Made of high strength aluminum or steel
  • Light, robust, precise, fast, effective
  • Cost effective

With our GRIP Connectors you can create an almost infinite possibility of tool connections. Connect or change grippers, polishing tools, welding heads, metering tools or calibration tips via fast intuitive operation and simple installation.

Each GRIP Connector is equipped with counterbores for direct mounting. The size and position of the counterbores are adapted to DIN EN ISO 9409-1. One connection – 1000 possibilities: Thanks to our wide range of variants and sizes, we have the right Connector for every application.

The GRIP connector comparison

Select one or more of the Connectors in order to compare product data.

SHW

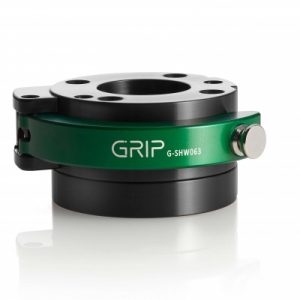

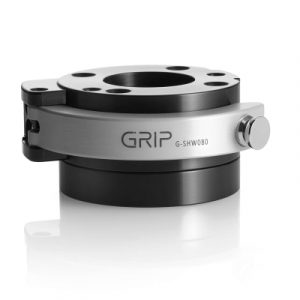

SHW Connector

MGW

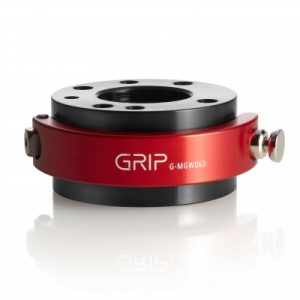

MGW Connector

SWS

SWS Connector

SWA

SWA Connector

SHW
MGW
SWS
SWA
characteristics
load max. in kg12 – 6810 – 12014 – 2008 – 62
height32 – 7030 – 7030 – 10420 – 40
dimensions0,18 – 40,2 – 10,50,41 – 23,80,14 – 5,5
materialAL, anodizedAL, anodized / steel, nitraded / stainless steel VAsteel, nitraded + AL / steel, nitraded / steelAL, anodized / steel, nitraded
mek/sek-option

Innovative, precise, intuitive and fast: Standardize the interface to your industrial robot or your cobot – connect and disconnect any tool within seconds.

  • Standardized interface ISO9409-1
  • Simple and intuitive operation
  • Made of high strength aluminum or steel
  • Light, robust, precise, fast, effective
  • Cost effective

With GRIP Connectors you can create an almost infinite possibility of tool connections. Connect or change grippers, polishing tools, welding heads, metering tools or calibration tips via fast intuitive operation and simple installation.

Each GRIP Connector is equipped with counterbores for direct mounting. The size and position of the counterbores are adapted to DIN EN ISO 9409-1. One connection – 1000 possibilities: Thanks to our wide range of variants and sizes, we have the right Connector for every application.

The GRIP connector comparison

Select one or more of the Connectors in order to compare product data.

SHW

SHW Connector

MGW

MGW Connector

SWS

SWS Connector

SWA

SWA Connector

SHW
MGW
SWS
SWA
characteristics
load max. in kg12 – 6810 – 12014 – 2008 – 62
height32 – 7030 – 7030 – 10420 – 40
dimensions0,18 – 40,2 – 10,50,41 – 23,80,14 – 5,5
materialAL, anodizedAL, anodized / steel, nitraded / stainless steel VAsteel, nitraded + AL / steel, nitraded / steelAL, anodized / steel, nitraded
mek/sek-option



Feeding through

Discover our products for the implementation of compressed air and electrical signals. Our highlight in the area of feedthroughs, the DDF Multi Swivel, prevents twisting of air and/or vacuum lines during endless rotary movements, so that rotating tools are elegantly supplied with drive energy.

In addition to our DDF Multi-Swivel, we also offer feed-through modules that match our Connectors: the MEK Multi Energy Coupling and the SEK Energy Coupling.

SEK Energy Coupling



The SEK Energy Coupling is a SHW Connector accessory that enables the transmission of energy, air and vacuum.



DETAILS & SIZES

SEK

MEK-PM Multi-Energy-Coupling



The MEK-PM Multi-Energy Coupling is a further development of our MEK series. The inlets and outlets for the pneumatic and electrical lines are horizontally arranged. This reduces the height profile of the MEK-PM. Pneumatic hoses can be connected to the coupling by means of push-in fittings (connection M5).



DETAILS & SIZES

MEK-PM

MEK Multi-Energy-Coupling



The MEK Multi-Energy-Coupling is an MGW Connector accessory to that enables the transmission of energy, air and vacuum.



DETAILS & SIZES

MEK

MEK-R Multi-Energy-Coupling



The MEK-R Multi-Energy-Coupling is a further development of our MEK series.  The four air feedthroughs are equipped with check valves on the robot side. This allows the MGW-R coupling to be released under activated compressed air. In addition, the electrical contacts on the MEK-R have been replaced with spring contacts.



DETAILS & SIZES

MEK-R

DDF Multi Swivel



Solution for the rotatable feed-through of 2 to 4 compressed air or vacuum lines.

The compressed air is fed through channels inside the DDF. This prevents twisting of the pneumatic lines during endless rotary movements.



DETAILS

DDF
